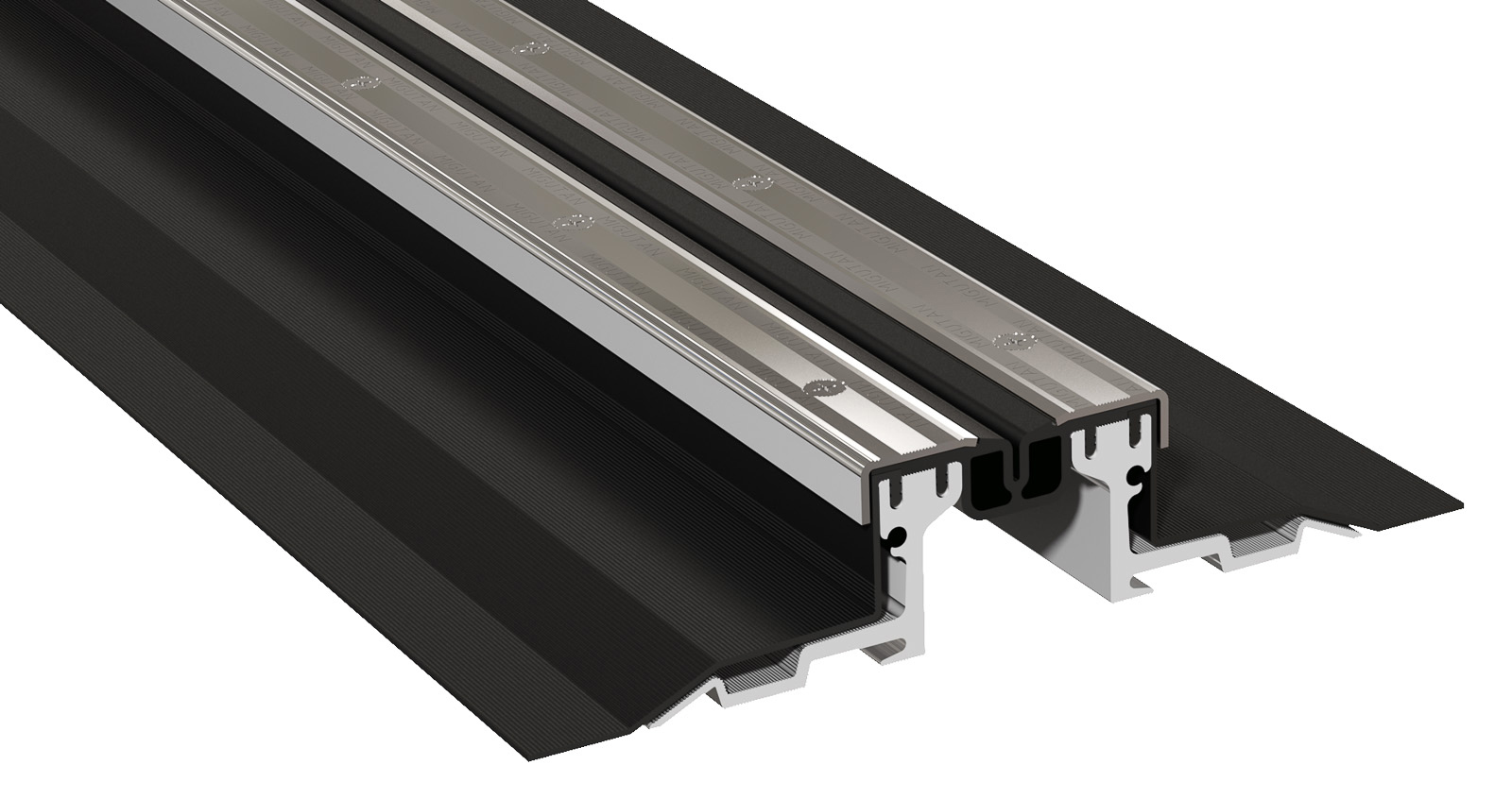

Joints are absolutely necessary to protect your building from water penetration or cracks. However, not all expansion joint covers are an ideal fit for every joint. When it comes to watertight joint covers for bituminous surface sealing that can be driven over, you are best advised to use our MIGUTAN series with long sheets. The long sheets ensure the best possible adhesive bond with the surface sealing.

The joint covers can be used on walls and floors and withstand loads from cars, trucks (in accordance with DIN 1072) and forklifts (in accordance with DIN 1055). The joint covers of the MIGUTAN series with long sheets can be installed in new constructions and in the renovation of buildings.

Our MIGUTAN covers with long sheets also have a number of further advantages to offer:

• Official test certificates for watertightness (AbP) as proof of usability under building law are available
• The sealing insert is on top surface, which enables visual inspection and replacement without disrupting the surface
• For a norm-conform connection to the bituminous sheeting and the best possible connection with the sealing layer, the AAS sheets are provided with striations on both sides
• Striated stainless steel cappings ensure absolute watertightness through maximum contact pressure
• Mounting brackets are made of high-strength aluminium alloy ensure high load-bearing capacity without any risk of rust formation

Do you want to seal with liquid plastics? No problem, we have correspondingly adapted sheets for a permanent and watertight connection.

Would you like to know more about our waterproof joint covers? We will be happy to advise you and give you tips for your individual building project. We look forward to your visit in Hall Sued, A29!

A look at current construction projects shows: Flat roof construction is more popular than ever before. However, flat roofs have to be sealed especially against non-pressing water, and a particular weak point arises here in the area of structural joints: the sealing of separation and wall connection joints is often the cause of leaks, which can subsequently damage the substance of the building and lead to high renovation costs.

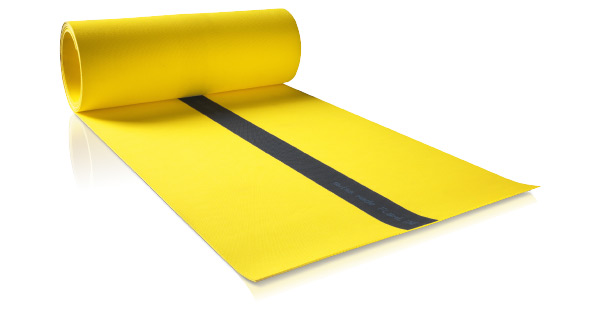

The solution: MIGUA FlamLINE, a joint tape for the secure sealing of movement joints with three-dimensional movement absorption. FlamLINE is a highly developed and worldwide field-proven waterstop technology that fulfils the various requirements for durable and high-quality joint sealing - even in areas covered by soil.

In this context, the effective connection of the joint to the adjacent surface waterproofing is crucial. MIGUA FlamLINE offers perfect results in combination with numerous bituminous sealants, bonding with epoxy mortar as well as with numerous liquid plastics. Using liquid plastics, you can rely on solutions tested together with our partners (including Bauder, Triflex, Soprema or Kemper).

The application area of the FlamLINE is versatile: it can be used on walls, floors as well as ceilings. It does not matter whether it is a renovation, an installation on a load-bearing component or an installation on or in the screed. The FlamLINE can even be installed retrospectively.

In addition, MIGUPREN FlamLINE offers you further advantages:

• Official Building Authority Test Certificate (AbP) is available as evidence of sustainability
• Sealing system meets the demands of DIN 18531, 18532 und 18533.
• For joint type I and II according to German building regulations
• Proof of radon impermeability provided at the IAF Radionuclide Laboratory
• Elastic stretch zone to ensure the absorbtion of movement
• Lateral adhesive flanges reinforced with beams
• Movements up to ± 240 mm

MIGUPREN FlamLINE consists of the elastic material Butyl-Elastomer. This offers you:

• Water pressure up to 0.5 bar
• Excellent resilience against ozon
• Very good long-term heat resistance (up to +90° C)
• Very good flexibilty at low temperatures (down to -40° C)
• Overall resilience against chemicals: Very good against alkali, diluted acids and saline solutions
• Excellent against water vapour
• Very good resilience against polar solvents such as alcohol and ketones
• Suitable for green roofs

Find out more about our MIGUPREN FlamLINE joint tape and the possible applications for your project in a face-to-face talk. We look forward to your visit in Hall Sued, A29!

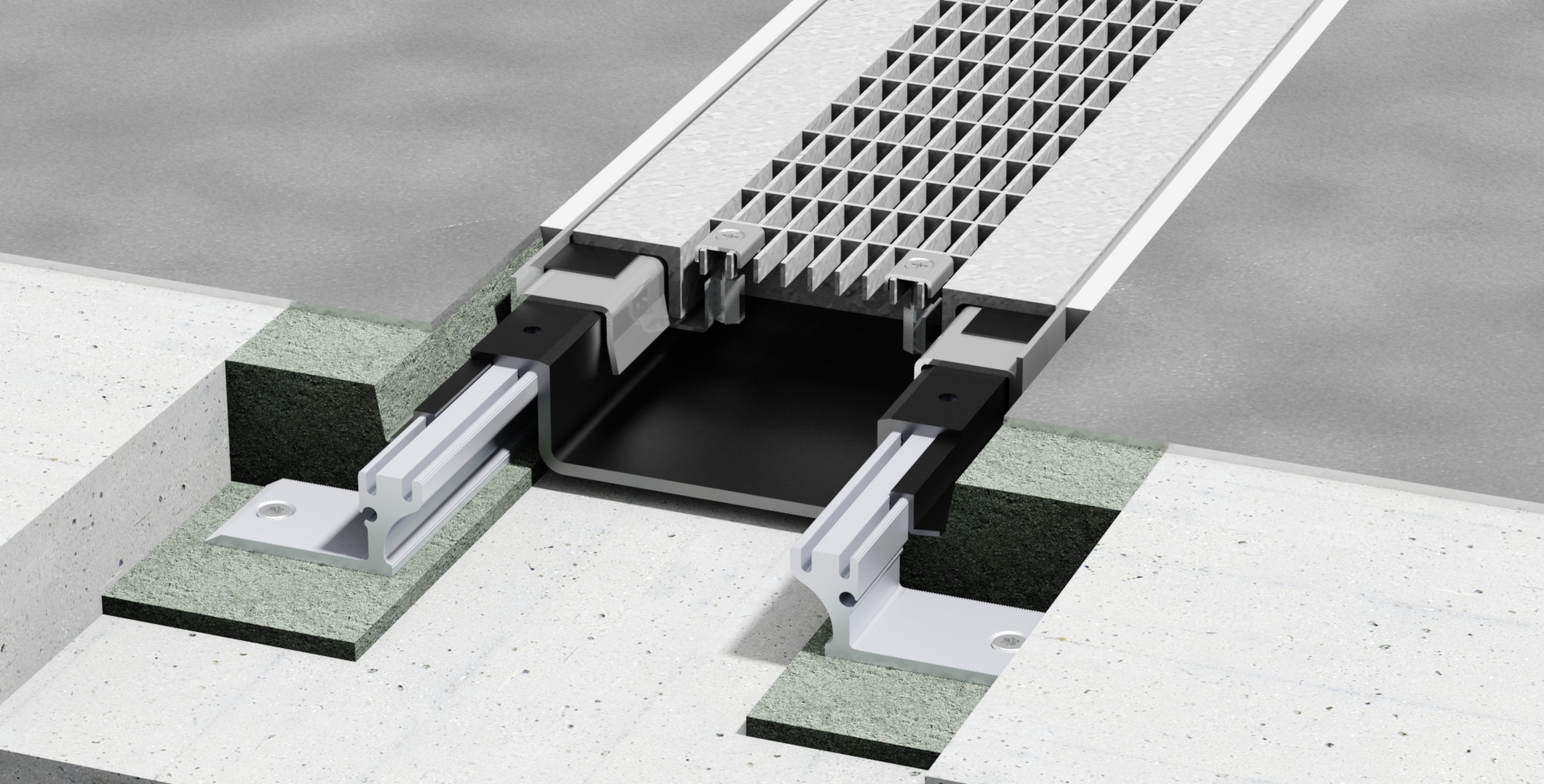

Water ingress despite gutter system? With our MIGUA gutter systems especially for floors with coating systems, you are on the safe side. Because it ensures that the water only flows along where it should: through the gutter. Thanks to the use of our short sheets, the gutter system connects optimally with the adjacent floor.

Our gutter solution can be used in all areas of a parking building: on the open deck, on the intermediate deck as well as on the ramps.

In accordance with the requirements of parking buildings, all MIGUA gutter systems of this series can be driven over and withstand loads from pedestrians and cars (DIN-compliant according to DIN 1433, load class B125).

Our gutter systems for floors with coating systems also offer you the following advantages:

• Modular, adaptable and patented gutter system with unique, replaceable, unloaded watercourse
• We take care of the measuring for you and then manufacture your customised gutter system
• Ideally suited for use in car parks, as it is resistant to the media occuring there
• Combinations of different sealing systems are also possible (e.g. ramp with coating / bituminous sealing)
• The unique crossing of gutter and expansion joint cover system avoids additional drains and / or changes to the slope
• Also available as a joint-gutter combination, in which the joint cover runs next to the gutter

We would be happy to provide you with more information on our unique gutter systems and advise you on your individual construction project. Visit us in Hall Sued, A29!

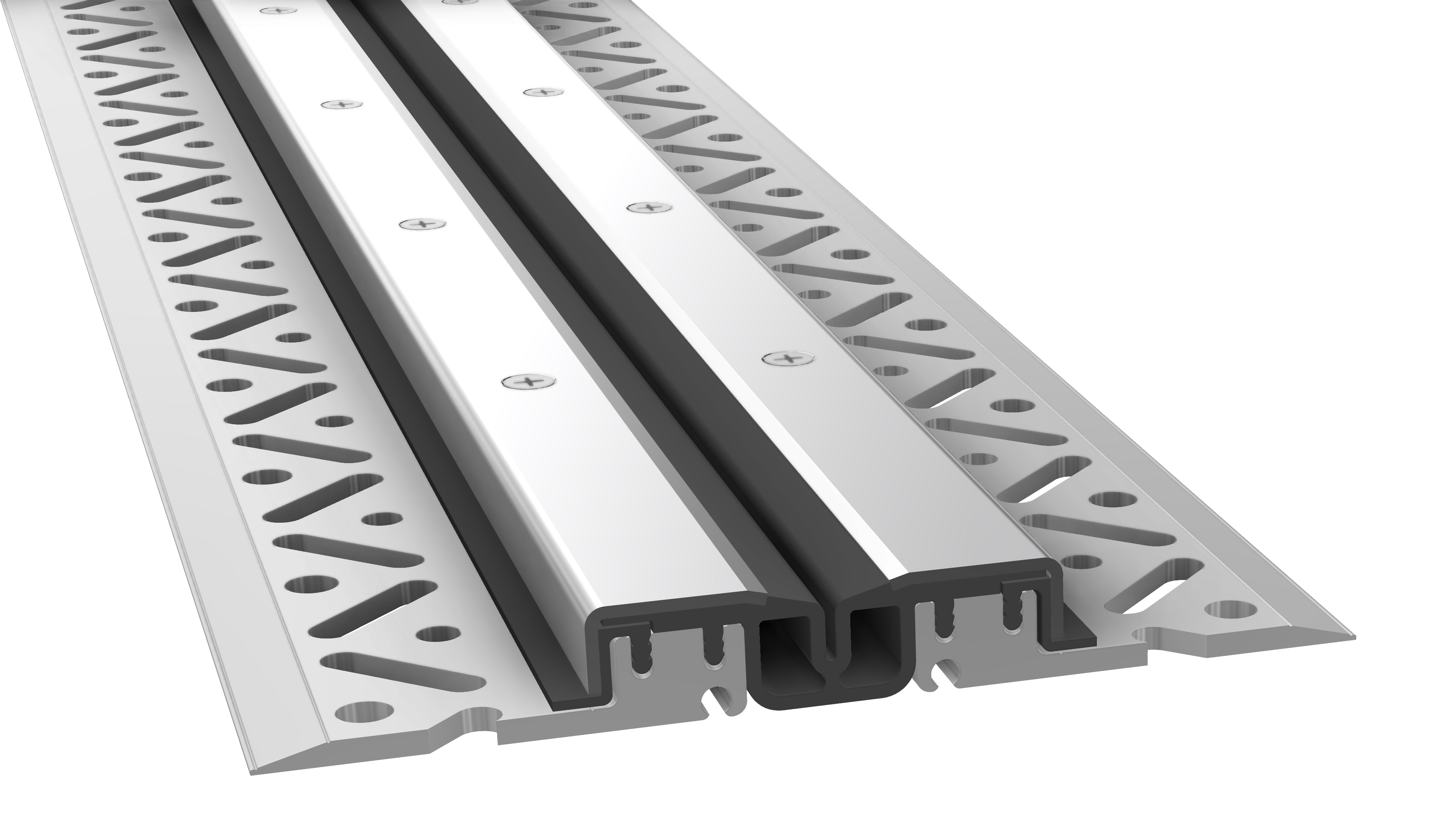

Are you looking for an expansion joint cover that perfectly matches the coating system of your car park? With our MIGUTAN series with short sheets, you have found the perfect product. Because these expansion joint covers are not only watertight and can be driven over, thanks to the short AAS sheets they can also be optimally combined with your floor surface.

At the same time, they can withstand heavy loads, because they are designed for cars as well as for trucks (according to DIN 1072) and for air-tyred forklifts (according to DIN 1055). The covers of this series can be used both on the floor and on the wall.

And the best thing is: no matter which installation situation prevails - the covers are versatile. They can be used not only in new buildings but also in renovations.

As you can see, they are expansion joint covers with many advantages. Our MIGUTAN joint covers with short sheets offer you even more advantages:

• Official test certificates for watertightness (AbP) as proof of usability under building law are available
• The sealing insert is on top surface, which allows visual inspection and replacement without disrupting the surface
• Striated stainless steel cappings ensure absolute watertightness by maximum contact pressure
• Mounting brackets are made of high-strength aluminium alloy ensure high load-bearing capacity without any risk of rust formation
• The connection joint with connection joint filler cover AAP 50/20 serves for a proper and economical connection of the coating system
• Complementary systems with clip-on stainless steel protective cappings are also available and easy to install

Would you like to know more details about our expansion joint covers? Or about the various applications in your individual building project? Then visit us in Hall SUED, A29!

When it comes to protecting your car park from water penetration, MIGUA is the right partner at your side. Because we don't just offer watertight joint covers. Our gutter systems also ensure that water only flows along where it should. Thanks to the use of long sheets, our gutter systems are especially suitable for bituminous layers and thus also protect the adjacent soil from water penetration. If joints run parallel to the watercourse, our combined joint-gutter solution is just right for you.

The gutter system is suitable for use throughout the entire parking building - on the open deck, on the intermediate deck as well as on the ramps.

In accordance with the requirements of a car park, all gutter systems in this MIGUA series can be driven over and withstand the stresses and strains of pedestrians and cars.

Due to its design, it is suitable for joints with a width of up to 276 mm.

In addition, the MIGUA gutter system for bituminous layers offers the following advantages:

• Modular, adaptable and patented gutter system with unique, replaceable, unloaded watercourse
• We take care of the measuring for you and then manufacture your customised gutter system
• Ideally suited for use in parking buildings, as it is resistant to the media occuring there
• Combinations of different sealing systems are also possible (e.g. ramp with coating / bituminous sealing)
• The unique crossing of gutter and expansion joint cover system avoids additional drains and / or changes to the slope
• Also available as a joint-gutter combination, in which the expansion joint cover runs next to the gutter

The sealing is to be done with liquid plastics? No problem, for this we have correspondingly adapted connection sheets for a permanent and watertight connection.

Would you like to know more about our unique gutter systems? We will be happy to advise you and give you tips for your individual building project. We look forward to your visit in Hall Sued, A29!
